Lighting is rarely the first safety concern that comes to mind on a hazardous industrial site. But in environments where flammable gases, solvent vapors, or combustible dust are part of daily operations, an uncertified light fixture is more than inadequate — it is a potential ignition source.
The global explosion-proof lighting market reflects just how critical this issue has become. Valued at over USD 443 million in 2024, it is projected to reach USD 645 million by 2030, growing at a CAGR of 6.3% as industries worldwide face tightening safety regulations and accelerating infrastructure investment. Today, more than 110 countries mandate explosion-proof lighting for classified hazardous zones — a figure that has risen by 23% since 2020.
This guide covers what explosion-proof lighting is, how hazardous area classification works, and why four specific industries — marine and shipbuilding, power generation, paint and coating, and wastewater treatment — depend on it to protect their people and operations.
Explosion-proof lighting refers to luminaires specifically engineered to prevent their internal electrical components from igniting the surrounding atmosphere. Unlike standard fixtures, explosion-proof lights are built with robust enclosures that contain any internal arcing or excessive heat, preventing it from reaching flammable gases, vapors, or dust particles in the ambient air.
These fixtures must be independently certified against internationally recognized safety standards — most commonly ATEX (used in Europe), IECEx (international), and UL/NEC (used in North America) — before they can be legally installed in a classified hazardous area.
As of 2024, approximately 61% of all explosion-proof lighting installations globally are LED-based, reflecting the industry's shift away from legacy fluorescent and HID technology. LED explosion-proof fixtures offer up to 45–60% lower energy consumption while delivering longer service life and significantly reduced maintenance requirements.
Before selecting explosion-proof lighting, it is essential to understand how hazardous areas are classified. Regulatory frameworks divide hazardous zones based on the type of hazardous substance present and the frequency with which it appears.
| Zone | Definition | Typical Locations |
|---|---|---|
| Zone 0 | Explosive atmosphere present continuously or for long periods | Inside tanks, vessels, pipework |
| Zone 1 | Explosive atmosphere likely to occur in normal operation | Around pumps, valves, flanges |
| Zone 2 | Explosive atmosphere unlikely in normal operation, but possible | Surrounding Zone 1 areas, general plant areas |
| Zone | Definition | Typical Locations |
|---|---|---|
| Zone 20 | Combustible dust cloud present continuously or for long periods | Inside silos, hoppers, dust collectors |
| Zone 21 | Combustible dust cloud likely in normal operation | Near filling/emptying points, conveyor transfer points |
| Zone 22 | Combustible dust cloud unlikely but possible | Areas surrounding Zone 21 |
In the United States and Canada, the NEC system uses a Class/Division framework. Class I covers flammable gases and vapors; Class II covers combustible dusts. Division 1 corresponds broadly to Zones 0 and 1, while Division 2 corresponds to Zone 2.
Explosion-proof luminaires operate under temperature classes ranging from T1 (450°C max surface temperature) to T6 (85°C), with the temperature class required depending on the ignition temperature of the specific substance present in the environment.
Selecting the wrong zone-rated fixture is not just a compliance failure — it is a safety liability. Always verify zone classification with a qualified hazardous area assessor before specifying lighting.

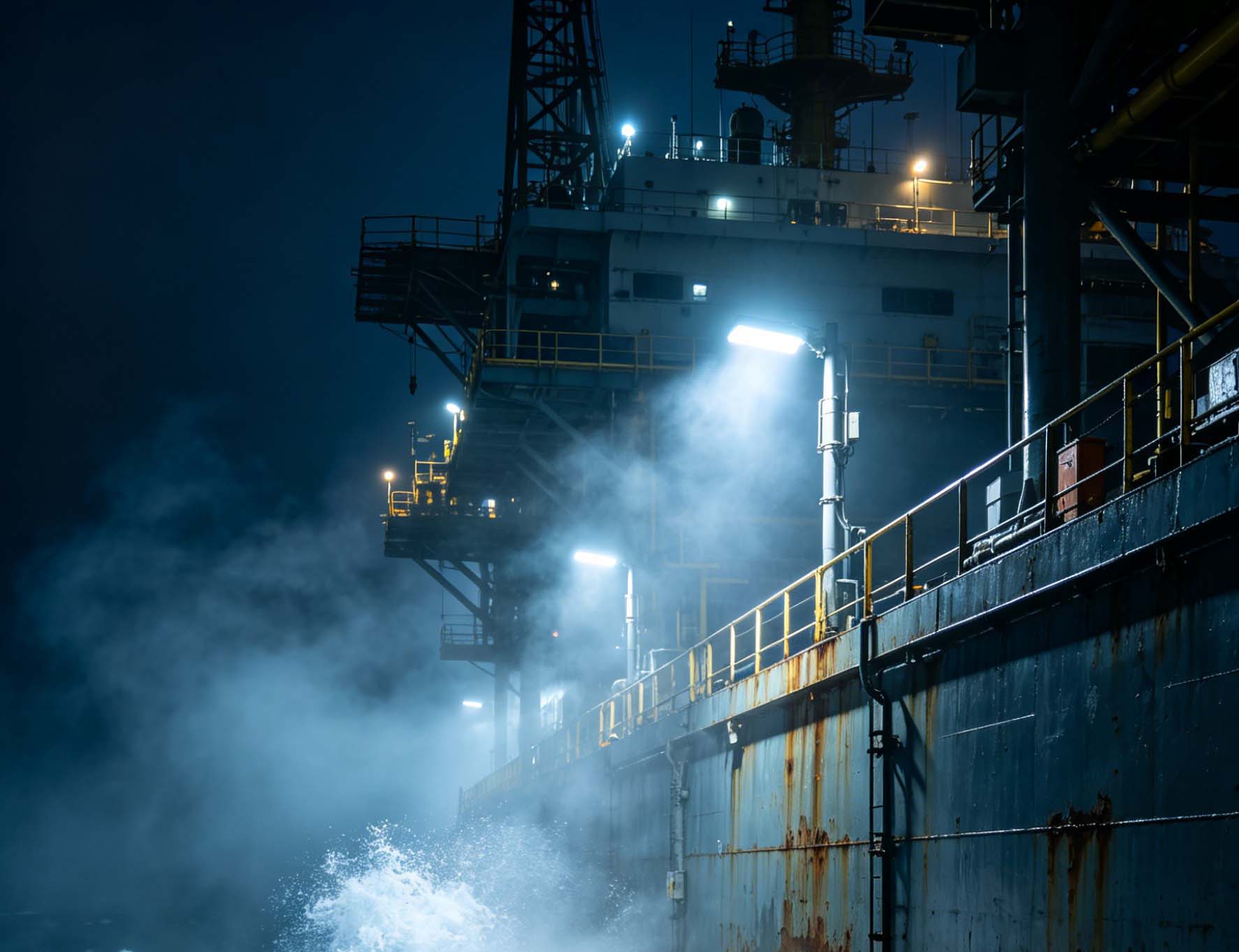

Ships and offshore structures present a uniquely demanding combination of hazards: volatile fuel vapors in engine rooms and cargo holds, constant salt-air corrosion, mechanical vibration, and extreme humidity — all simultaneously.
Key hazardous zones on vessels:
Marine explosion-proof lighting must meet not only ATEX or IECEx gas zone requirements but also marine classification society standards from bodies such as DNV, Lloyd's Register, or ABS. Housings are typically constructed from marine-grade aluminum alloy or 316 stainless steel with IP66 or IP67-rated sealing to resist continuous salt-water exposure and high-pressure washdowns.
LED marine explosion-proof fixtures offer a critical operational advantage: their 50,000+ hour rated lifespan dramatically reduces the frequency of lamp replacements in confined, hard-to-access shipboard locations — reducing both maintenance cost and the safety risks associated with working in live hazardous spaces.

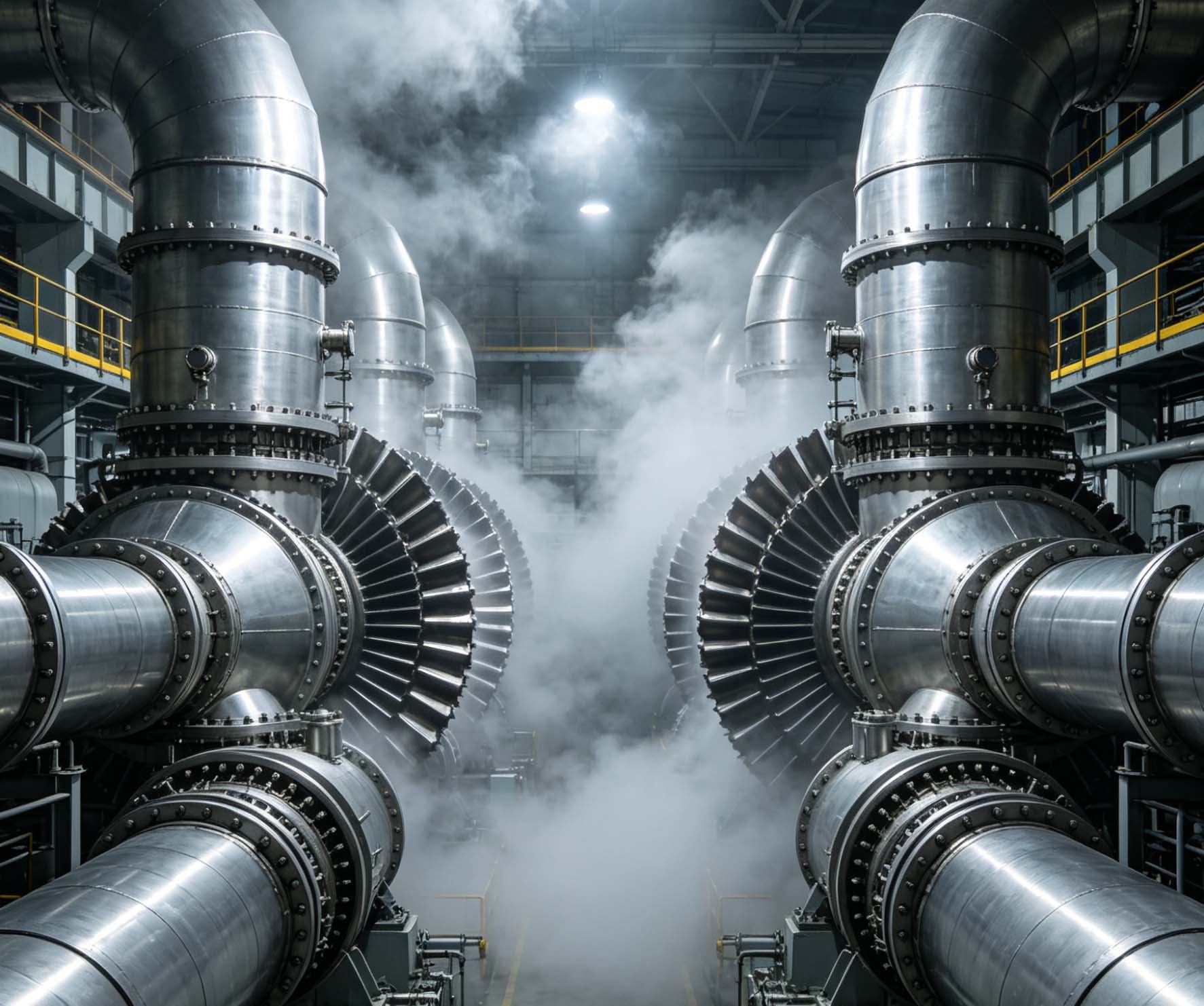

Power generation facilities — including gas turbines, coal-fired plants, combined heat and power (CHP) stations, and renewable energy infrastructure — contain multiple zones where flammable substances create persistent explosion risk.
Key hazardous zones in power plants:
Hydrogen presents a particularly acute challenge for lighting specification. With an ignition temperature of just 500°C and an explosive range of 4–75% in air, hydrogen-cooled generators require luminaires rated to at least Gas Group IIC — the most stringent gas group classification under ATEX and IECEx.
Beyond certification, power generation sites demand lighting with near-zero unplanned maintenance. Replacing a fixture inside a live turbine enclosure or a hydrogen-cooled generator room requires plant shutdown or complex permit-to-work procedures. Long-life LED explosion-proof lighting eliminates these maintenance windows, keeping plant uptime where it belongs.

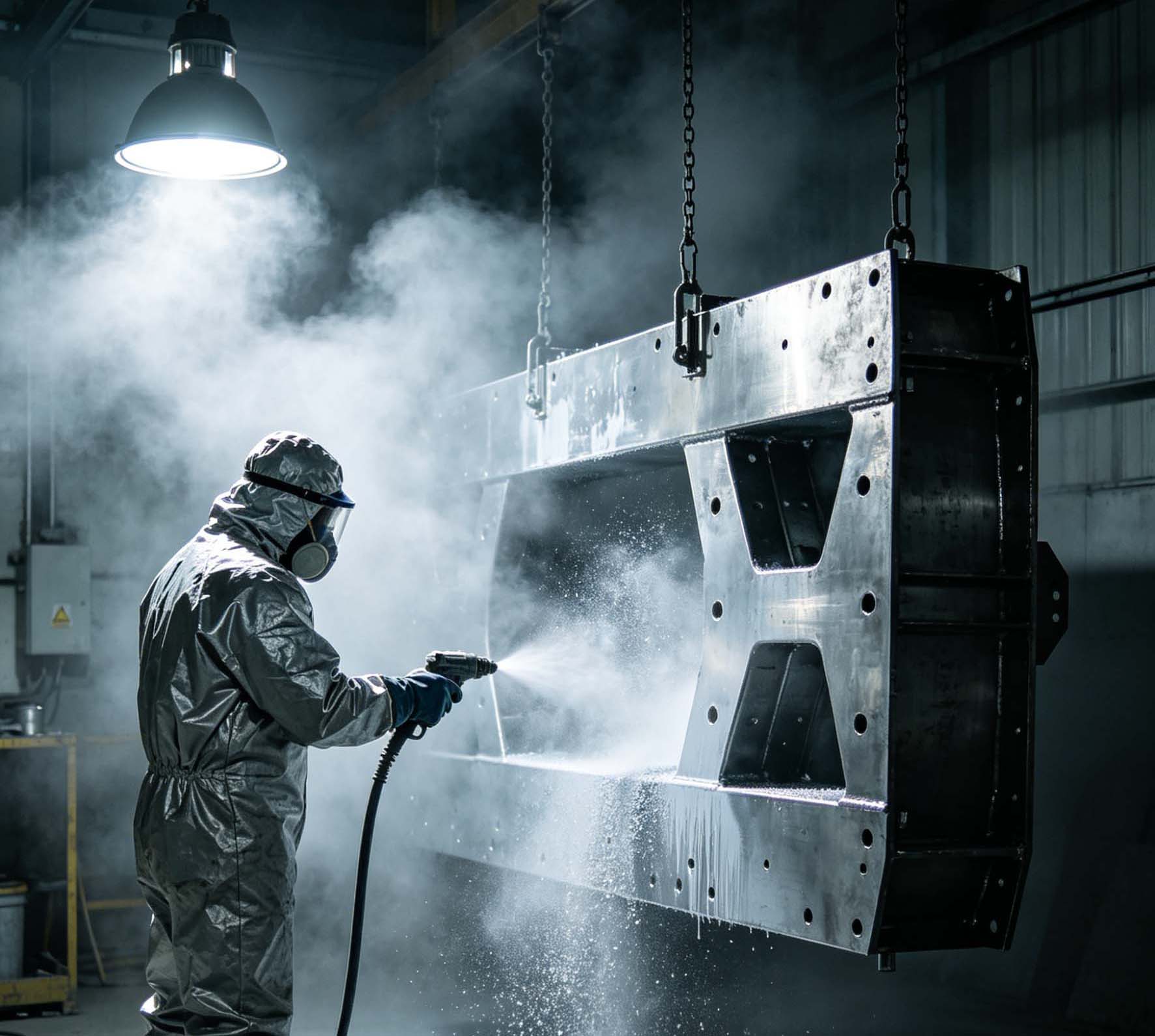

Spray booths, paint mixing rooms, solvent storage areas, and dip coating tanks are among the most hazardous spaces in any manufacturing or finishing operation. Flammable solvent vapors from lacquers, primers, two-part epoxies, and industrial coatings can reach explosive concentrations rapidly — and they persist in the atmosphere long after active spraying has stopped.
Key hazardous zones in paint and coating operations:
A critical but often overlooked factor in paint environment lighting is surface cleanability. Overspray builds up on all surfaces inside a spray booth, including light fixtures. Explosion-proof luminaires for paint applications should feature smooth, recess-free housings without exposed fasteners or crevices that trap paint residue — both to maintain light output and to prevent the buildup of potentially combustible coating layers.
Bright, even illumination is also a direct quality driver in this environment. Consistent, shadow-free light across the work surface enables finishing technicians to detect surface defects, sags, and missed areas before the coating cures — reducing rework and material waste.

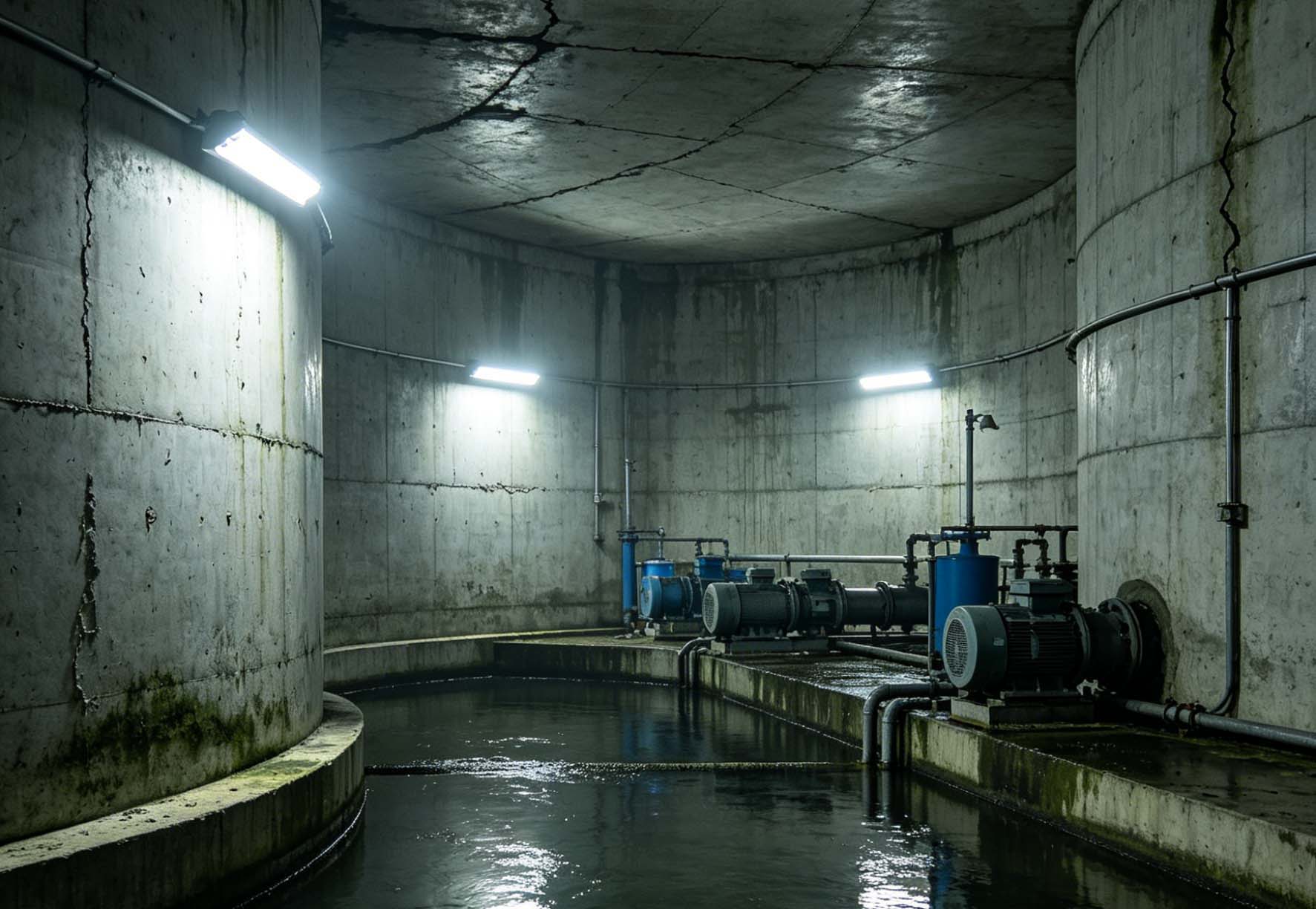

Wastewater treatment facilities generate hazardous gases as an unavoidable byproduct of the biological treatment process. Methane (CH₄) and hydrogen sulfide (H₂S) are both produced during anaerobic digestion and can accumulate to explosive concentrations in confined spaces if ventilation is inadequate.
Key hazardous zones in wastewater treatment:
Hydrogen sulfide deserves particular attention. Beyond its flammability, H₂S is acutely toxic at concentrations above 50 ppm and has a deceptively low odor detection threshold that impairs the sense of smell with repeated exposure — meaning workers may not detect dangerous concentrations by smell alone. Explosion-proof lighting rated for Gas Group IIB provides the appropriate protection for H₂S-present environments.
The wet, chemically aggressive environment of a wastewater facility also demands corrosion resistance beyond standard IP ratings. Look for luminaires with polyester powder-coated aluminum or fiberglass-reinforced polyester (FRP) housings that resist the combined attack of moisture, cleaning chemicals, and hydrogen sulfide corrosion over the fixture's operational life.
| Standard | Region | Administering Body | Applicable Zones |
|---|---|---|---|
| ATEX Directive 2014/34/EU | European Union | Notified Bodies (e.g., DEKRA, SGS) | Zone 0–2, Zone 20–22 |
| IECEx | International | IEC System for Certification | Zone 0–2, Zone 20–22 |
| UL 844 / NEC Article 500 | North America | UL, CSA | Class I & II, Division 1 & 2 |
| CNEX | China | China National Accreditation | Zone 0–2, Zone 20–22 |
| INMETRO | Brazil | INMETRO | Zone 0–2, Zone 20–22 |
When sourcing explosion-proof lighting for international projects, IECEx certification is the most widely accepted single credential, recognized across more than 50 countries and often accepted alongside local national certifications without additional testing.
What is the difference between explosion-proof and flameproof lighting? "Explosion-proof" is the North American term (defined by NEC/UL standards) for a fixture that can contain an internal explosion without igniting the external atmosphere. "Flameproof" (Ex d) is the IEC/ATEX equivalent protection concept. Both achieve the same safety outcome through the same fundamental engineering principle, but are certified under different regulatory frameworks.
Can I use Zone 2 certified lighting in a Zone 1 area? No. Zone 2 certified equipment is not rated for use in Zone 1 or Zone 0 areas. The zone rating represents the minimum level of protection required — you may use higher-rated equipment in lower-risk zones (e.g., Zone 1 certified fixtures are acceptable in Zone 2 areas), but never the reverse.
How often does explosion-proof lighting need to be inspected? Under IEC 60079-17, hazardous area electrical equipment should undergo a visual inspection at least annually, a close inspection every 3 years, and a detailed inspection (involving partial dismantling) at intervals determined by the site's formal inspection and maintenance schedule. LED fixtures significantly reduce the frequency of lamp-change-related detailed inspections.
Is LED technology suitable for all explosion-proof applications? LED is now the dominant technology in explosion-proof lighting, accounting for over 61% of installations globally. Modern LED explosion-proof fixtures are available for all zone classifications, all gas groups, and all temperature classes. The primary consideration is ensuring the LED driver electronics are fully rated and enclosed within the certified enclosure.
What IP rating do I need for outdoor marine or wastewater applications? IP66 provides protection against powerful water jets and is the standard minimum for outdoor industrial applications. IP67 adds protection against temporary immersion (up to 1 meter for 30 minutes) and is recommended for pump station and wet well installations. IP68 is specified for continuous submersion and applies to specialist underwater lighting applications.
Inadequate or uncertified lighting in a classified hazardous area is not just a regulatory violation — it is a direct safety risk. A single ignition event in an industrial facility can cause fatalities, total asset loss, regulatory shutdown, and liability claims that dwarf the cost of an entire facility lighting upgrade many times over.
The business case for certified explosion-proof lighting is straightforward: the investment cost is fixed and known; the cost of an incident is not.
Our explosion-proof lighting range covers every zone classification, gas group, and installation type — from marine-grade bulkheads for offshore vessels to high-bay LED floodlights for power plant turbine halls.
Contact our technical team today for a free zone assessment and product recommendation. We'll help you specify the right certified fixtures for your environment, your regulatory framework, and your budget — so your team stays protected, and your operation stays running.
